A minimal dbt-duckdb starter for building a MotherDuck warehouse end to end and shipping a Dive on top of it. It reads the Common Crawl domain hyperlink graph (which sites link to a target domain) straight from remote gzip files, joins it with the Hacker News dataset, and builds tested mart tables. A deploy script then publishes a Dive that visualizes the marts. It shows the MotherDuck pattern of turning large remote CSV/gzip sources into performant tables with dbt, combining datasets across a share, and deploying a Dive as code.

With this setup you'll learn how to:

  • Turn large CSV/gzip source data into performant MotherDuck tables
  • Combine data from different sources (Common Crawl + a Hacker News share) with dbt
  • Deploy a MotherDuck Dive from validated, tested marts

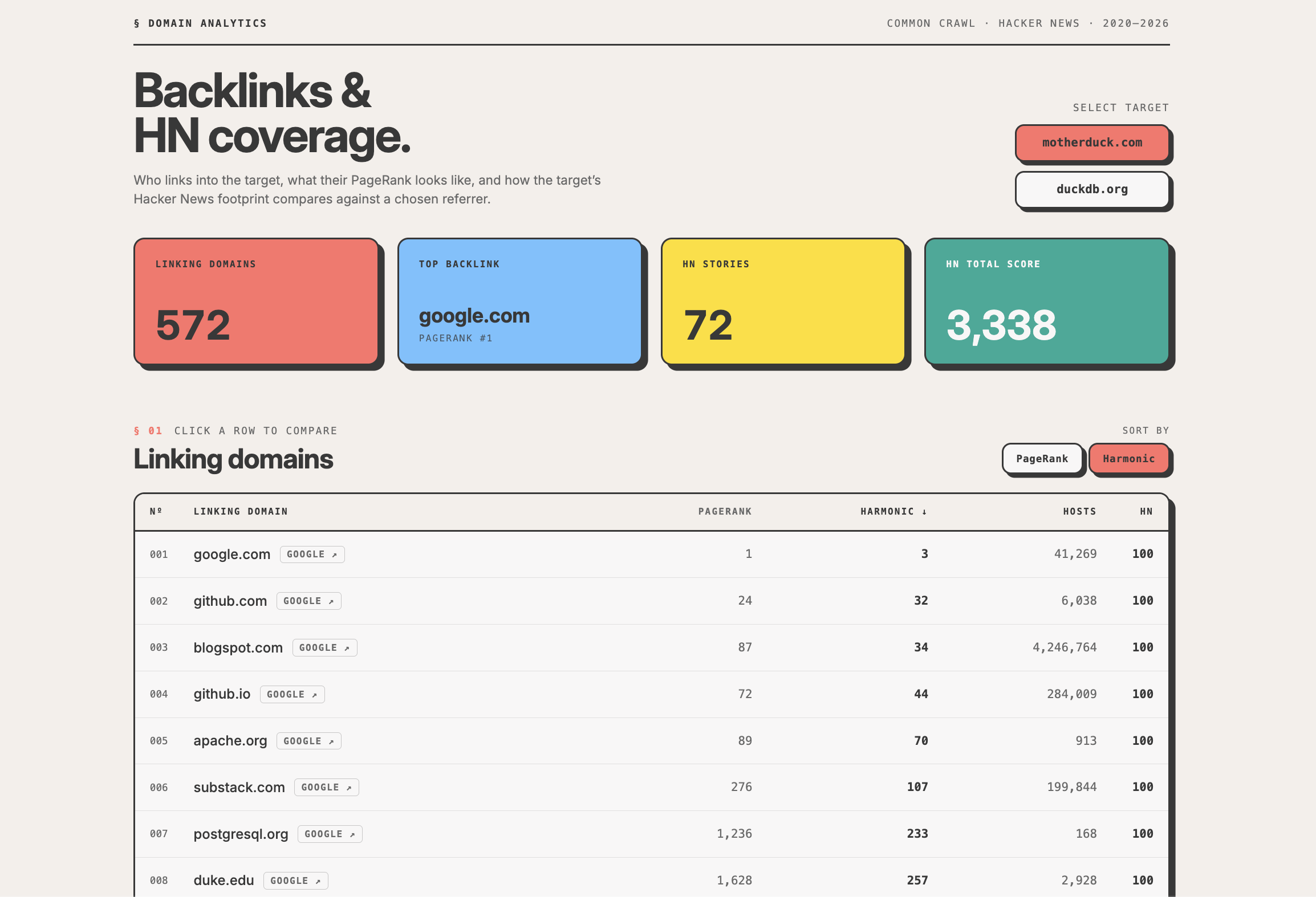

Backlinks and Hacker News Coverage Dive

How it works​

The dbt project layers staging, intermediate, and mart models, each in its own schema suffix (<DBT_SCHEMA>_stg, _int, _mart):

  • models/staging/commoncrawl: source-backed tables over the Common Crawl remote gzip files for the configured commoncrawl_snapshot. The default snapshot cc-main-2026-jan-feb-mar exposes three outputs: domain-ranks (PageRank and harmonic centrality), domain-vertices (domain ids and reversed host names), and domain-edges (domain-to-domain links, filtered to your configured domains).
  • models/staging/hackernews: Hacker News stories. The model attaches the public Hacker News MotherDuck share before reading it:
  ATTACH IF NOT EXISTS 'md:_share/hacker_news/de11a0e3-9d68-48d2-ac44-40e07a1d496b' AS hacker_news;
  • models/intermediate: target-domain joins and edge expansion.
  • models/marts: tested tables ready to query, and the source the Dive reads.

The Dive lives in dives/backlinks-hn/dive.tsx and queries the mart tables. The deploy script (scripts/deploy-dive.sh) reads dives/<name>/dive-manifest.json, loads the dive.tsx source with DuckDB read_text(), substitutes the database and _mart schema into the source, and creates or updates the Dive in MotherDuck with the MD_CREATE_DIVE / MD_UPDATE_DIVE_CONTENT functions.

Questions to answer​

  • Which target domain(s) should the link graph and HN coverage focus on (commoncrawl_domains)?
  • Which MotherDuck database and base schema, and dev or prod (DBT_DUCKDB_PATH, DBT_SCHEMA, --target)?
  • Which Common Crawl snapshot, and how many HN stories per domain (commoncrawl_snapshot, hackernews_max_stories_per_domain)?
  • Is the large Common Crawl edges download acceptable (see Caveats), or should the scope be narrowed first?
  • Deploy the Dive, and as a preview or to production?
  • Is a MotherDuck account and token available, with access to the Hacker News share?

Caveats​

  • The Common Crawl edges file is large (~14GB). stg_commoncrawl__domain_edges is materialized incrementally so it is not re-downloaded on every run; avoid a casual --full-refresh of that model.
  • DBT_DUCKDB_PATH and DBT_SCHEMA must match between the dbt build and the Dive deploy. If they differ, the Dive points at a database/_mart schema that the build did not populate and renders empty.
  • The Hacker News staging model attaches a MotherDuck share (md:_share/hacker_news/...); the run needs access to that share.
  • scripts/deploy-dive.sh requires the duckdb CLI and jq on PATH and MOTHERDUCK_TOKEN set; it exits early if any are missing.
  • The deploy expects a unique Dive title: if more than one Dive already shares the title it errors instead of guessing which to update. Use PREVIEW_BRANCH for non-production deploys.
  • threads: 24 in profiles.yml is aggressive; lower it for smaller machines or plans.

What you'll adjust​

SettingPurposeOptions / example
commoncrawl_domains (dbt_project.yml vars)The target domains the link graph and HN stories are filtered to.[motherduck.com, duckdb.org]; add your own domains
commoncrawl_snapshot (dbt_project.yml vars)Which Common Crawl web-graph snapshot to read.cc-main-2026-jan-feb-mar
hackernews_max_stories_per_domain (dbt_project.yml vars)Cap on HN stories pulled per domain.100
DBT_DUCKDB_PATH (env)MotherDuck database dbt builds into. Must match the Dive deploy.md:my_db (dev), md:dbt_prod (prod)
DBT_SCHEMA (env)Base schema; models land in <DBT_SCHEMA>_stg/_int/_mart. Must match the Dive deploy.dbt_dev (dev), dbt_main (prod)
dbt --target (profiles.yml)Which profile output to use.dev (default), prod
threads (profiles.yml)dbt thread count.24; lower it for smaller machines or plans
MOTHERDUCK_TOKEN (env)MotherDuck access token for dbt and the Dive deploy.a token from the MotherDuck UI
dives/backlinks-hn/dive.tsx + dive-manifest.jsonThe Dive's React/SQL source and its title/description.edit tiles, queries, title
PREVIEW_BRANCH (env, deploy)Appends a branch name to the Dive title so a preview does not overwrite production.$(git branch --show-current)

Run it​

Prerequisites: a MotherDuck account and access token, and uv. The Dive deploy also needs the duckdb CLI and jq on your PATH.

uv sync
export MOTHERDUCK_TOKEN="..."

# Validate, then build the warehouse (dev target by default)
uv run dbt debug --profiles-dir .
uv run dbt parse --profiles-dir .
uv run dbt build --profiles-dir .

Domains are configured in dbt_project.yml under commoncrawl_domains; add more domains there as needed. Create the target MotherDuck database first if it does not already exist.

Deploy the dive​

Build the dbt project first, then deploy the Dive. DBT_DUCKDB_PATH and DBT_SCHEMA must match the values used for the build, because the deploy script substitutes the database and ${DBT_SCHEMA}_mart schema into the Dive source:

export MOTHERDUCK_TOKEN="..."
export DBT_DUCKDB_PATH="md:my_db"
export DBT_SCHEMA="dbt_dev"
uv run dbt build --profiles-dir .
./scripts/deploy-dive.sh backlinks-hn

For production, use your prod database and schema for both the build and deploy:

export DBT_DUCKDB_PATH="md:dbt_prod"
export DBT_SCHEMA="dbt_main"
uv run dbt build --target prod --profiles-dir .
./scripts/deploy-dive.sh backlinks-hn

For a preview that does not overwrite the production Dive, set PREVIEW_BRANCH; the script appends the branch name to the Dive title:

PREVIEW_BRANCH="$(git branch --show-current)" ./scripts/deploy-dive.sh backlinks-hn

The script prints the deployed Dive URL.

Files​

  • dbt_project.yml - project config and the vars knobs (commoncrawl_domains, commoncrawl_snapshot, hackernews_max_stories_per_domain) plus per-layer schema and materialization.
  • profiles.yml - dev and prod DuckDB outputs reading DBT_DUCKDB_PATH / DBT_SCHEMA from the environment; the token comes from MOTHERDUCK_TOKEN.
  • models/staging/ - source-backed tables: commoncrawl/ (the three Common Crawl outputs over remote gzip, edges materialized incrementally) and hackernews/ (reads the attached Hacker News share).
  • models/intermediate/ - target-domain joins and edge expansion.
  • models/marts/ - tested mart tables the Dive queries (mart_domain_backlinks, mart_domain_link_graph, mart_hackernews_domain_stories).
  • macros/commoncrawl.sql - helpers for building the Common Crawl source URLs and reads.
  • dives/backlinks-hn/ - the Dive: dive.tsx (React + SQL source with __DBT_DATABASE__ / __DBT_MART_SCHEMA__ placeholders) and dive-manifest.json (title, description, source file).
  • scripts/deploy-dive.sh - deploys a Dive from dives/<name>/ using the DuckDB CLI and the MD_CREATE_DIVE / MD_UPDATE_DIVE_CONTENT functions.
  • pyproject.toml / uv.lock - Python dependencies (dbt-duckdb) managed with uv.
  • assets/backlinks-hn-dive.png - screenshot of the deployed Dive.
