Give Every Dive Your Brand Style With a Guide

Build this recipe with your AI assistant

I want every Dive my team builds to follow our brand palette, number formatting, and layout rules, published once org-wide rather than restated each session. Help me adapt the "Give Every Dive Your Brand Style With a Guide" MotherDuck recipe to our conventions, using it as a guide: https://motherduck.com/docs/cookbook/dive-style-guide

Open in ChatGPT Open in Claude View on GitHub

An agent building a Dive reads MotherDuck's built-in design conventions first: a default palette, KPI and chart layout rules, and a visual checklist. Those defaults are good, and they are not yours. Define your brand rules once as a Guide, publish it to your organization, and every Dive anyone builds carries them — nobody has to remember to ask.

dive-style-guide.sql is the annotated blank to copy for your own brand. styles/ holds four finished looks you can run as they are, screenshots included, so you can see how far a Guide moves the output before writing one.

How it works

dives is a reserved topic name. A Guide filed there is appended to the Dive instructions an agent receives before it starts building, listed by title and description alongside its ID. The agent reads the ones that look relevant in full.

Two things follow from that mechanism, and they shape how the example Guides are written:

The description is the hook. It's the only text an agent sees before deciding whether to open the Guide, so it states what the Guide governs rather than what it is.
Write only the differences. The MotherDuck defaults are already in the agent's context. A Guide that restates them costs tokens and changes nothing. Each example covers color, typography, number and date formatting, layout, charts, tables, and copy — and stays quiet everywhere else.

The same mechanism works for Flights under the reserved flights topic, where the content is scheduling standards, naming rules, and reusable ingest patterns rather than visual conventions.

Pick a starting point

Same three queries against sample_data.nyc.taxi, same Dive viewport, one Guide swapped:

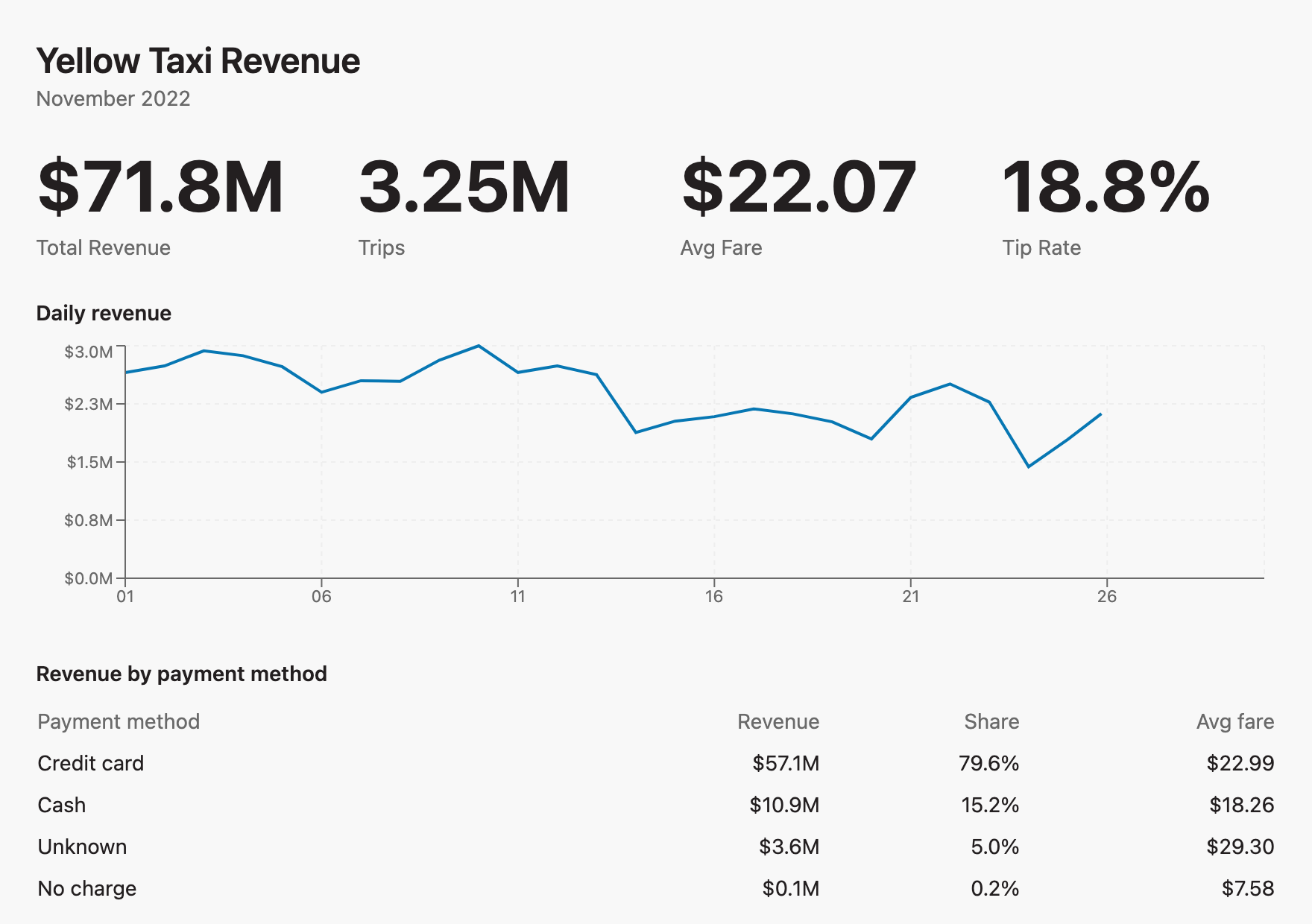

No Guide — the MotherDuck defaults	Swiss minimal

Paper	Editorial

Terminal

What each one changes, beyond the palette:

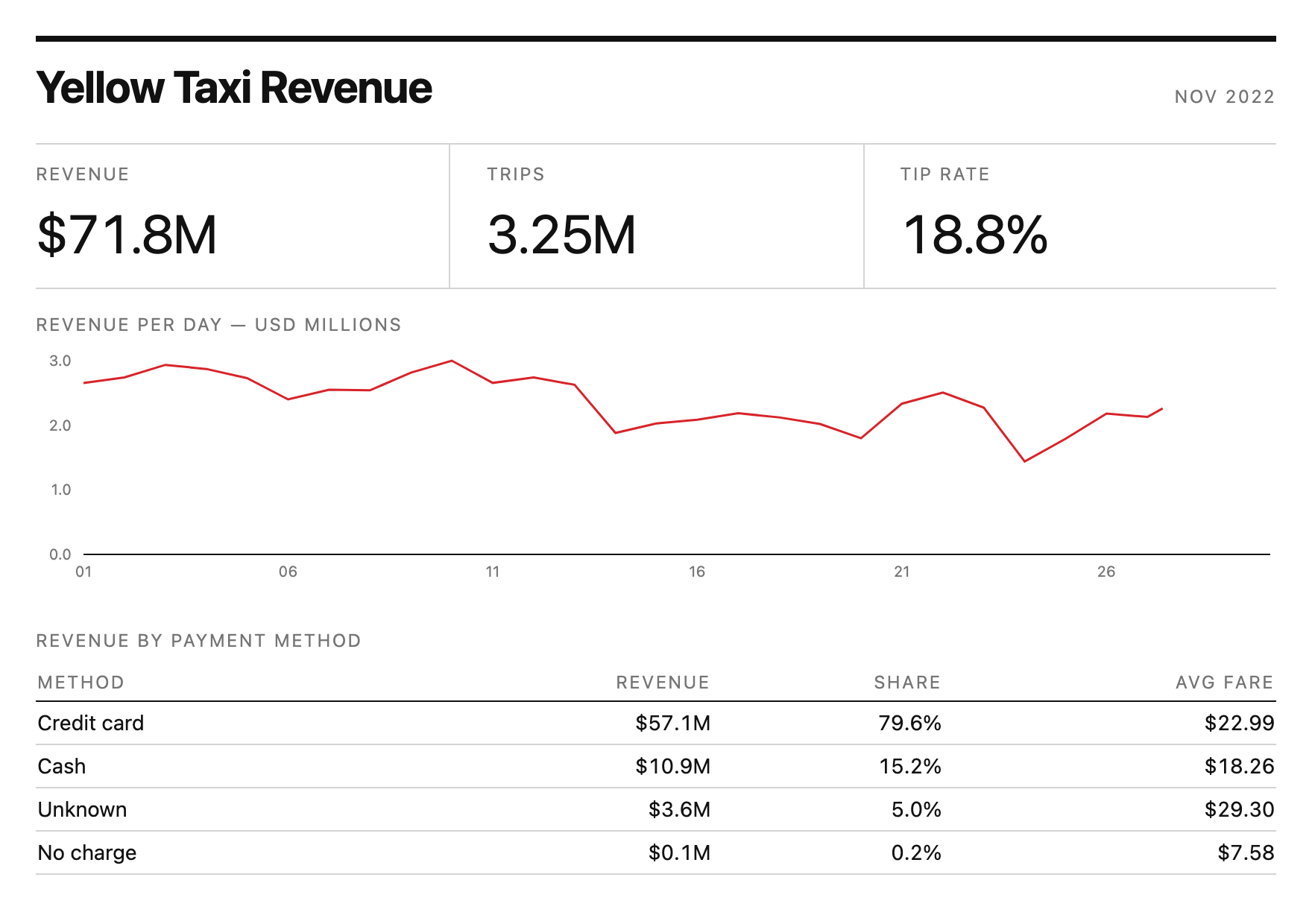

Swiss minimal. Hairline rules instead of cards, uppercase micro-labels, three KPIs at normal weight, no gridlines, one red accent for every series. Reads as a printed report.

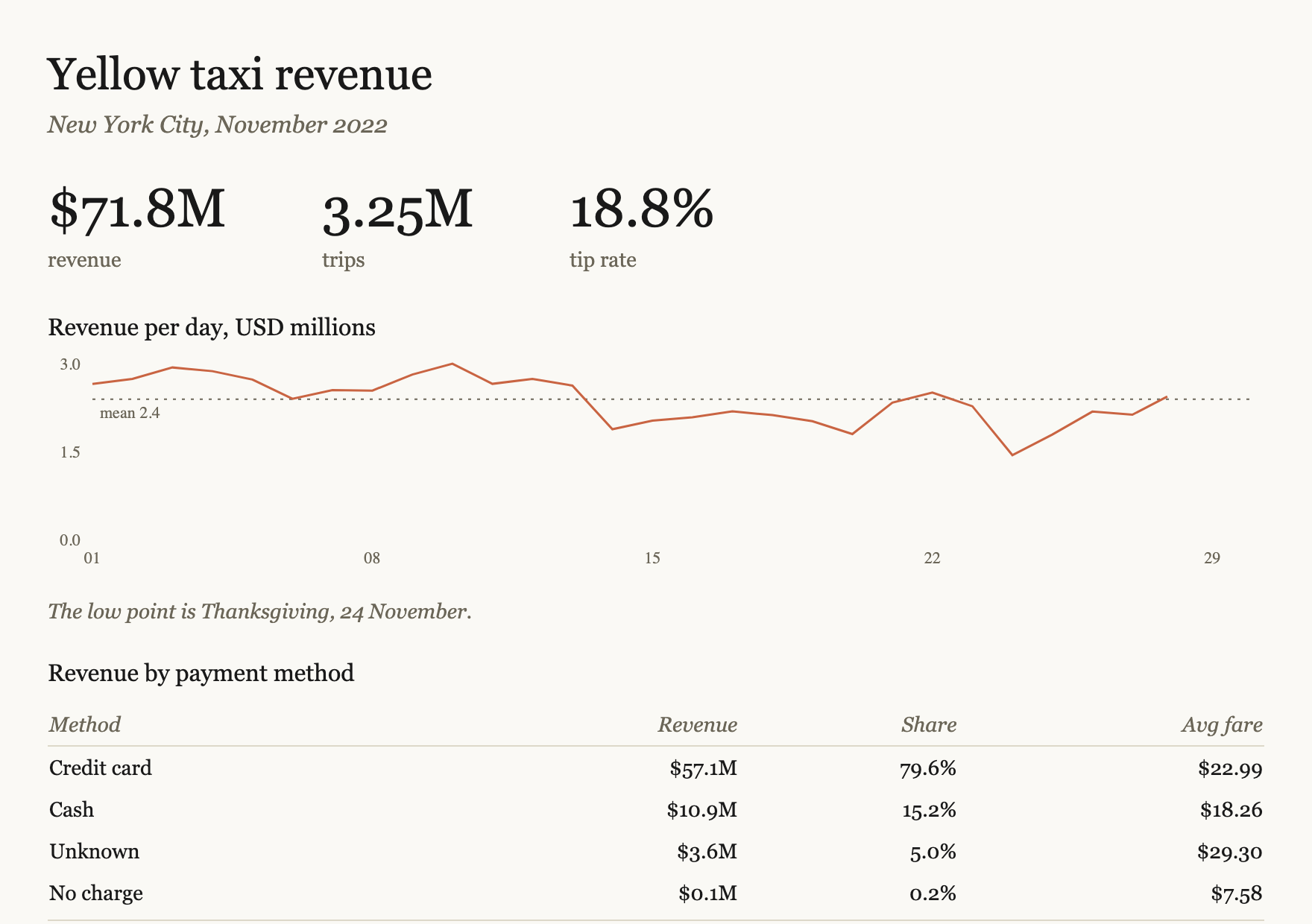

Paper. Serif throughout including axis ticks, cream stock, clay line, a dashed mean line, and the observation in an italic note under the chart rather than in the title.

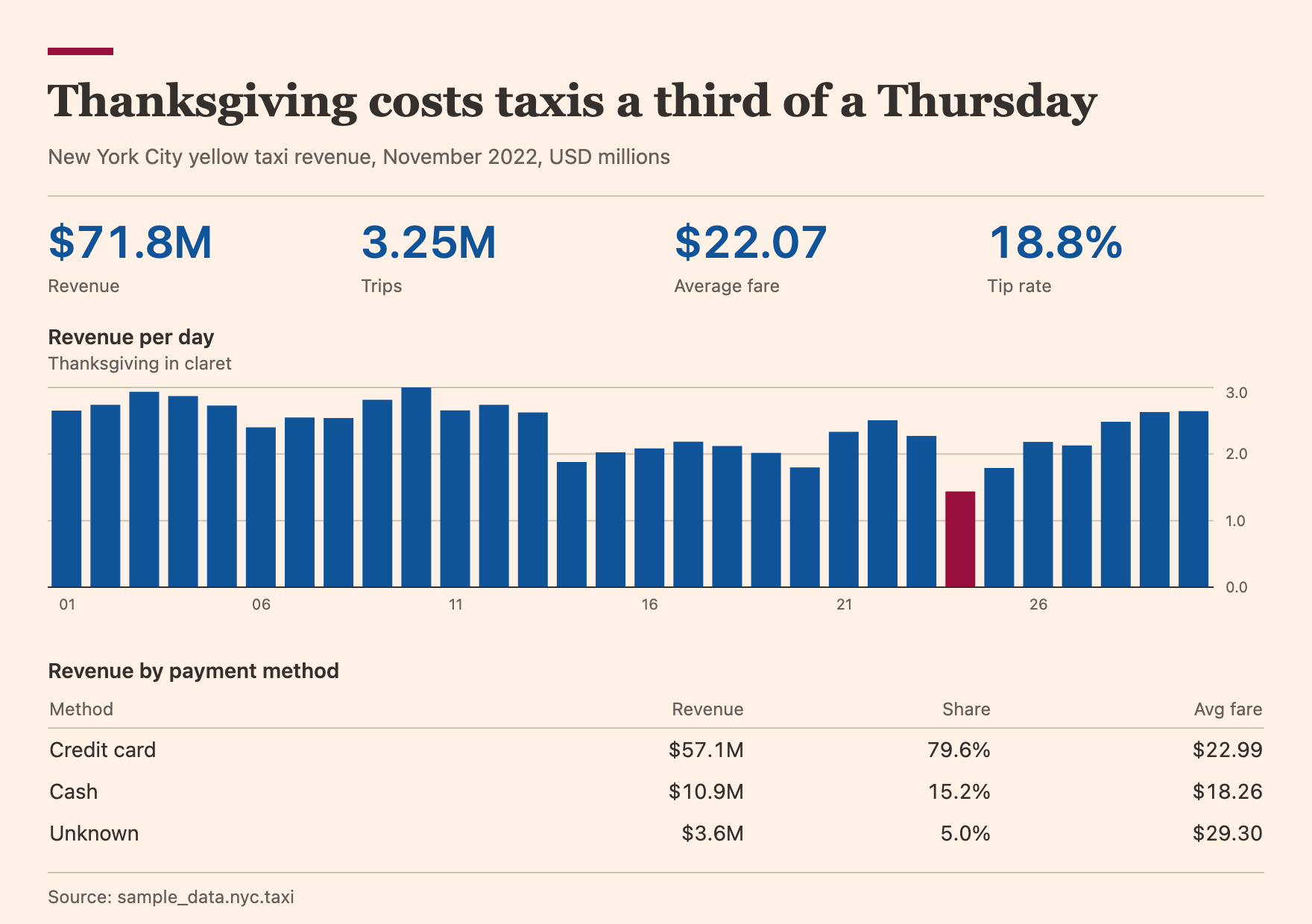

Editorial. Financial Times conventions: pink stock, a claret marker block, oxford blue bars with claret on the one day the headline is about, a serif headline that states the finding with the comparison behind it, a sans dek carrying place, period and unit, the scale on the right, and a source line on every page.

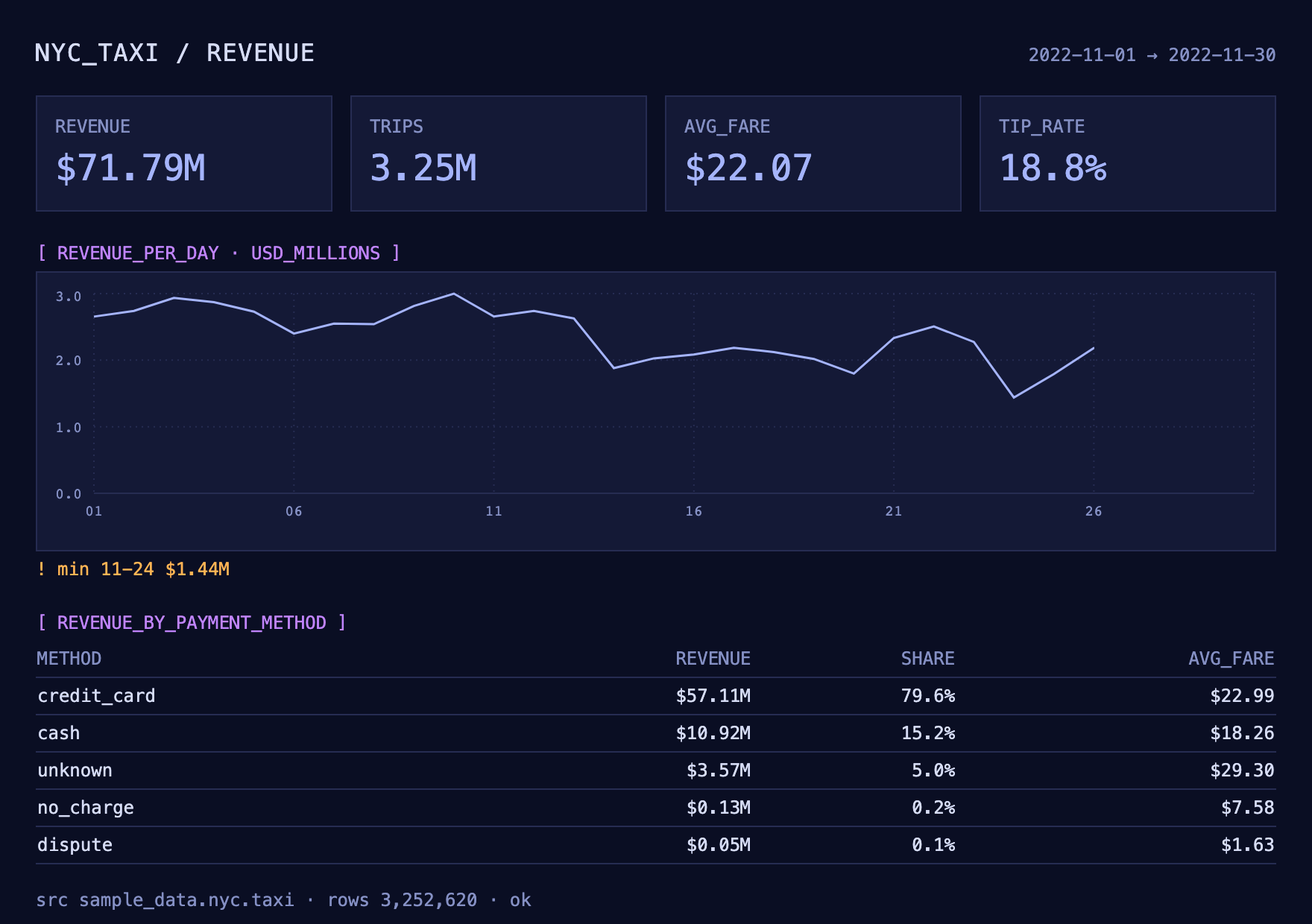

Terminal. Mission control, and the one style where panel chrome is correct. Deep indigo ground, monospace everywhere, violet bracketed snake_case section headers, periwinkle values, amber reserved for anomalies, a status line closing the page. For dashboards people watch during an incident, not for anything a customer reads.

Run one as-is to see the shape of a working Guide, then edit the palette and copy rules. Only one dives Guide should govern a given look — installing several leaves the agent to choose.

What you'll adjust

Everything inside the content string, whether you start from dive-style-guide.sql or one of the four styles:

Palette. Replace the hex values with your brand colors. Keep the distinction between a primary series color and directional positive/negative colors — an agent that treats every downward line as negative produces misleading charts.
Typography. Which of font-sans, font-serif, and font-mono the page uses, plus weight, size, tracking, and case for titles, labels, and KPI values. Restate the family in the Recharts tick props; SVG text does not inherit Tailwind font classes.
Formatting. Currency scale and precision, percentage precision, whether units live on the axis or in the title, date formats for axis ticks against table cells.
Layout. KPI count, whether sections carry borders or only whitespace, how many charts belong on a page, table row caps.
Copy. Whether chart titles state the measure or the finding. This one rule prevents a lot of unwanted editorializing — and Editorial shows the deliberate exception, where the headline carries the finding and names the comparison it rests on.

Also change title and description to name your organization, and decide on access. Every file creates a private Guide (access = 'user') so you can try it before it affects anyone else.

Questions to answer

Do you have a documented brand palette, or are you standardizing one here for the first time? If the latter, pick five or six categorical colors that stay distinguishable next to each other.
Should this be personal or org-wide? Start personal, confirm the output looks right, then promote it.
Does your team already have styling rules living somewhere else — a design system doc, a BI tool theme? Copy from there rather than inventing a second source of truth.
Do dark and light dashboards serve different audiences? Then they are two Guides with two clear descriptions, not one Guide with a mode switch the agent has to guess.

Run it

Open dive-style-guide.sql, or one of styles/*.sql, and edit the content block to match your conventions.
Run it in the MotherDuck UI, or through any DuckDB client attached to MotherDuck. It returns the new Guide's id.
Ask an agent to build a Dive and check that it picks up your rules.
When the output looks right, uncomment the MD_SET_GUIDE_ACCESS call at the bottom of the file, fill in the ID, and run it to publish the Guide org-wide. That step needs admin permission.

To verify the Guide is filed correctly at any point:

SELECT id, title, description, access
FROM MD_LIST_GUIDES(topic = 'dives');

Caveats

The topic must read exactly dives. A nested topic like dives/style is not the reserved topic and won't reach the Dive instructions.
Style Guides are deliberately absent from the query-side Guide overview, so an agent preparing to write SQL never loads them. They surface through get_dive_guide and list_guides instead. If you're checking whether the Guide exists and looking at get_query_guide, you won't find it.
Promoting a Guide with MD_SET_GUIDE_ACCESS does not transfer ownership. The creator remains the owner and the only account that can delete it. For a Guide the whole team should maintain, create it from a shared service account.
Rules an agent can't act on get ignored. "Make it feel premium" does nothing; a hex value and a KPI count do.
The Dive runtime loads no external fonts, so typography rules only have three families to work with: font-sans, font-serif, and font-mono. Naming your licensed brand typeface in a Guide gets you the default sans.
Recharts renders axis labels as SVG text that ignores Tailwind font classes. A Guide asking for serif or monospace has to say so in the tick props — tick={{ fontFamily: "serif" }} — or the charts will silently stay sans while everything around them changes.
Arbitrary-value Tailwind classes such as bg-[#fff1e5] do not resolve in the Dive runtime. Write brand colors as hex values in the Guide and let the agent apply them through inline style.
On a dark palette, state the dimmest text color you will accept. Left to itself an agent will reach for grays that fail contrast at label sizes.
The screenshots come from the components in preview/, written from each Guide and rendered against real rows from sample_data.nyc.taxi. An agent building from the same Guide will land on the same palette, formatting, and chrome, and will not reproduce the layout pixel for pixel.

Files

File	What it does
`dive-style-guide.sql`	The annotated blank: creates a Guide under the reserved `dives` topic with a worked style guide to edit, and commented follow-ups for publishing and verifying
`styles/swiss-minimal.sql`	White field, black ink, one red accent, rules instead of cards
`styles/paper.sql`	Cream stock, serif throughout, clay accent, minimum ink
`styles/editorial.sql`	FT news graphic: pink paper, oxford blue with a claret highlight, finding in the headline, source line
`styles/terminal.sql`	Mission-control console: deep indigo, monospace, periwinkle values and amber warnings
`preview/`	Vite harness that renders each style at the Dive viewport and writes `assets/*.png`. `npm install && npm run shoot`
`assets/*.png`	The rendered screenshots used above

Learn more

Style Dives and Flights with Guides — the full how-to, including the Flight equivalent
Using Guides to improve AI query accuracy — topics, governance, references, and Guide chaining
Dives — what Dives are and how agents build them
preview/README.md — how the screenshots are produced, and how to point the harness at live data
MCP tools involved: get_dive_guide returns the Dive instructions with your dives Guides appended, create_guide and set_guide_access are what an agent calls when you ask it to do this conversationally instead of running the SQL
