[Metabase](https://www.metabase.com/) is an open source analytics/BI platform that provides intuitive data visualization and exploration capabilities. This guide details how to connect Metabase to both local DuckDB databases and MotherDuck.

## Prerequisites

- Metabase installed (self-hosted)
- Admin access to your Metabase instance
- For MotherDuck connections: valid MotherDuck token

## Metabase Cloud

Metabase Cloud does not currently support installing custom drivers. Support for the DuckDB/MotherDuck driver on Metabase Cloud is under development.

Until Cloud support is available, use Self-hosted Metabase to connect to DuckDB or MotherDuck.

## Self-hosted Metabase

### Install the DuckDB driver

<Tabs>
<TabItem value="dockerfile" label="Dockerfile (bundled plugin)">

1. Create a `Dockerfile` that includes the latest Metabase plus the DuckDB driver:

```dockerfile
FROM eclipse-temurin:21-jre

ENV MB_PLUGINS_DIR=/plugins
RUN mkdir -p ${MB_PLUGINS_DIR} /app

# Latest Metabase
ADD https://downloads.metabase.com/latest/metabase.jar /app/metabase.jar

# Latest DuckDB driver
ADD https://github.com/MotherDuck-Open-Source/metabase_duckdb_driver/releases/latest/download/duckdb.metabase-driver.jar ${MB_PLUGINS_DIR}/

EXPOSE 3000
CMD ["java", "-jar", "/app/metabase.jar"]
```

2. Build and run:

```bash
docker build -t metabase-duckdb:latest .
docker run -d --name metaduck -p 3000:3000 -e MB_PLUGINS_DIR=/plugins metabase-duckdb:latest
```

Tip: For reproducible builds, pin versions instead of `latest`:

```dockerfile
# Example of pinning versions (replace X.Y.Z)
ADD https://downloads.metabase.com/vX.Y.Z/metabase.jar /app/metabase.jar
ADD https://github.com/MotherDuck-Open-Source/metabase_duckdb_driver/releases/download/1.X.Y/duckdb.metabase-driver.jar ${MB_PLUGINS_DIR}/
```

Note: Use a Debian/Ubuntu-based JRE image (not Alpine) to avcodoid glibc issues with the DuckDB driver.
</TabItem>

<TabItem value="manual" label="Manual">

1. Download the latest DuckDB driver `.jar`:

```bash
curl -L -o duckdb.metabase-driver.jar \
  https://github.com/MotherDuck-Open-Source/metabase_duckdb_driver/releases/latest/download/duckdb.metabase-driver.jar
```

1. Copy it to the Metabase plugins directory:

- Standard installation (example): If your `metabase.jar` is at `~/app/metabase.jar`, place the driver in `~/app/plugins/`

```bash
mkdir -p ~/app/plugins
mv duckdb.metabase-driver.jar ~/app/plugins/
```

- On Mac: The plugins directory is `~/Library/Application Support/Metabase/Plugins/` (if you are using a Mac)

```bash
mkdir -p "${HOME}/Library/Application Support/Metabase/Plugins/"
mv duckdb.metabase-driver.jar "${HOME}/Library/Application Support/Metabase/Plugins/"
```

- Custom location or Docker: set `MB_PLUGINS_DIR` to point Metabase at your plugins directory and place the `.jar` there (if you are using a custom location or Docker).

1. Restart Metabase so it picks up the new plugin.

</TabItem>

<TabItem value="ssh" label="Remote (SSH)">

1. SSH to the host and download to the plugins directory. Replace user/host and adjust `MB_PLUGINS_DIR` as needed.

```bash
ssh user@your-host "bash -lc '
  set -euo pipefail
  MB_PLUGINS_DIR=${MB_PLUGINS_DIR:-/app/plugins}
  mkdir -p "$MB_PLUGINS_DIR"
  if command -v wget >/dev/null; then
    wget -qO "$MB_PLUGINS_DIR/duckdb.metabase-driver.jar" \
      https://github.com/MotherDuck-Open-Source/metabase_duckdb_driver/releases/latest/download/duckdb.metabase-driver.jar
  else
    curl -L -o "$MB_PLUGINS_DIR/duckdb.metabase-driver.jar" \
      https://github.com/MotherDuck-Open-Source/metabase_duckdb_driver/releases/latest/download/duckdb.metabase-driver.jar
  fi
'"
```

2. Restart Metabase on the remote host:

- systemd: `ssh user@your-host 'sudo systemctl restart metabase'`
- Docker: `ssh user@your-host 'docker restart <metabase_container_name>'`
</TabItem>

</Tabs>

:::important
Restart required: Metabase must be restarted after adding or upgrading plugins. Hot-reload of drivers is not supported.
:::

:::tip
Compatibility and upgrades: New DuckDB driver releases are designed to be backward compatible with recent Metabase versions. Upgrading to the latest driver is recommended for bug fixes and stability. If you run a significantly older Metabase version, validate in staging first.
:::

### Add your database connection

After installing the driver, you can add MotherDuck as a data source in Metabase.

1. Log in to Metabase with admin credentials
2. Navigate to **Admin Settings** > **Databases** > **Add Database**
3. Select **DuckDB** as the database type

:::note
Since DuckDB does not do implicit casting by default, the `old_implicit_casting` config is currently necessary for datetime filtering in Metabase to function. It's recommended to keep it set.
:::

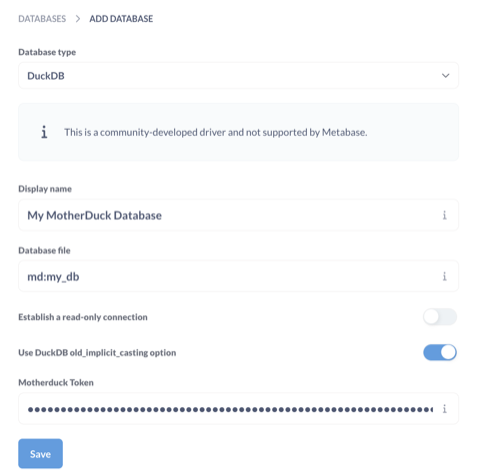

#### Connecting to MotherDuck

To connect to MotherDuck:

1. **Database name**: In the Database file field, enter `md:[database_name]` where `[database_name]` is your MotherDuck database name
2. **MotherDuck token**: Paste your MotherDuck token (retrieve from the [MotherDuck UI](/key-tasks/authenticating-and-connecting-to-motherduck/authenticating-to-motherduck/authenticating-to-motherduck.md))
3. **Configuration**: Enable `old_implicit_casting` (recommended) for proper datetime handling

![Example](../img/metabase_motherduck.png)

### DuckLake on Metabase

DuckLake is supported with the DuckDB driver in Metabase. Use the latest DuckDB driver release and a DuckDB version that supports DuckLake (DuckDB v1.3.2 or newer is recommended).

#### MotherDuck-managed DuckLake

If your DuckLake database is managed by MotherDuck, you can connect the same way you connect to any MotherDuck database:

1. Select DuckDB as the database type
2. Database file: `md:[ducklake_database_name]`
3. MotherDuck token: paste your token
4. Keep `old_implicit_casting` enabled (recommended)

No extra Init SQL is required. Query your tables normally in Metabase.

#### Own compute + DuckLake catalog (attach in Init SQL)

If you want Metabase’s embedded DuckDB to query a DuckLake stored externally, attach the DuckLake catalog in the connection’s Init SQL. This works for both MotherDuck-managed catalogs and self-managed catalogs.

- Init SQL for a MotherDuck-managed DuckLake catalog:

```sql
-- Attaches the DuckLake metadata catalog hosted in MotherDuck
ATTACH 'ducklake:md:__ducklake_metadata_[database_name]' AS dl1;
```

- Init SQL for a self-managed DuckLake catalog (local metadata DB) with S3 data path:

```sql
-- Replace the path to your DuckLake metadata DB and bucket prefix
ATTACH 'ducklake:/duckdb/my_ducklake_metadata.ducklake' AS dl1 (
  DATA_PATH 's3://my_bucket/lake/'
);
```

Once attached, reference tables with the alias, for example: `FROM dl1.my_table`.

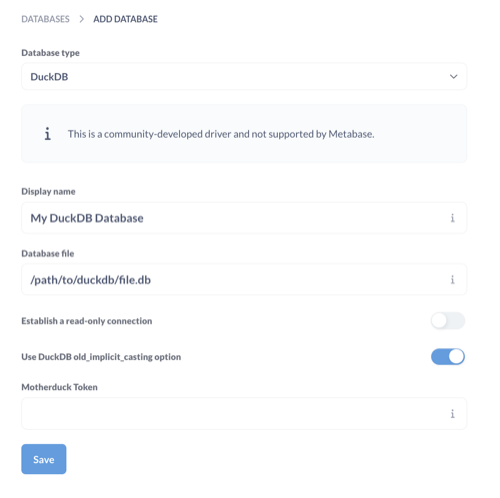

### Connecting to a Local DuckDB database

To connect to a local DuckDB database:

1. Database file: enter the full path to your DuckDB file (e.g., `/path/to/database.db`)
2. Configuration: enable `old_implicit_casting` (recommended) to ensure proper datetime filtering

:::note
DuckDB's concurrency model supports either one process with read/write permissions, or multiple processes with read permissions, but not both at the same time. This means you will not be able to open a local DuckDB in read-only mode, then the same DuckDB in read-write mode in a different process.
:::

![Example](../img/metabase_local_duckdb.png)

## Configuration Best Practices

- **Connection pooling**: For production instances, set an appropriate connection pool size based on expected concurrent users
- **Query timeouts**: Configure timeouts in Metabase settings to prevent long-running queries from affecting system performance
- **Data access**: Use database-level permissions in Metabase to control who can access which data sources

## Troubleshooting

| Issue | Solution |
|-------|----------|
| Driver not detected | Ensure driver is in the correct plugins directory and Metabase has been restarted |
| Connection failures | Verify database path (local) or database name and token (MotherDuck) |
| Permission errors | Check file permissions for local databases |
| Datetime filtering issues | Enable `old_implicit_casting` in the connection settings |
| Add MotherDuck token in the connection string | Specify a correct MotherDuck token or MotherDuck database name after the `md:` prefix |

### Updating the MotherDuck token

Metabase keeps long-lived database connections alive. When you update only the MotherDuck token while an existing connection is still cached, Metabase raises `Connection error: Can't open a connection to same database file with a different configuration than existing connections`.

Use one of the following approaches to refresh the token successfully:

1. **Add a cache buster while editing the database.** Edit the connection under **Admin Settings** > **Databases**, then update both the **Database file** field and the **MotherDuck Token** field with a small cache-busting change (for example, append `?refresh=20250917`). Updating both values at the same time forces Metabase to treat the configuration as new. Save the connection, then optionally revert the fields to their clean values once the change is persisted.

2. **Restart Metabase before updating the token.** Restart the Metabase service and, immediately after it starts, go straight to `/admin/databases` to update the token field. Do not open the Metabase home screen before editing the database connection, or the previous connection (with the old token) will be re-established.

### Connecting to a Local DuckDB database

To connect to a local DuckDB database:

1. **Database file**: Enter the full path to your DuckDB file (e.g., `/path/to/database.db`)
2. **Configuration**: Enable `old_implicit_casting` (recommended) to ensure proper datetime filtering
3. **Additional settings**:
   - **Read only**: Toggle as appropriate for your use case
   - **Naming strategy**: Choose your preferred table/field naming strategy

:::note
DuckDB's concurrency model supports either one process with read/write permissions, or multiple processes with read permissions, but not both at the same time. This means you will not be able to open a local DuckDB in read-only mode, then the same DuckDB in read-write mode in a different process.
:::

![Example](../img/metabase_local_duckdb.png)
